If you don't have a dedicated wood vise, here's a way to convert just about any standard metal working vice into one t
hat will securely grip wood without marking or damaging it. These easy-to-make jaws slip on quickly and are held in place with magnets.
A Simple Way to Make a Metal Vise Work for Wood
Step 1
Cut Parts to Size
The vise pads can be as long as you like. These are about 1 1/2" in width and 12 inches in length.
Step 2
Bore Shallow Holes in the Jaw Face Pieces
This can be done with a Forstner or spade bit the same diameter as the magnets.
Step 3
Insure That Holes are the Correct Depth
The top of the magnets should be level with the surrounding wood surface.
Step 4
Glue Magnets in Place
Instant CA glues are handy for this. Hot melt glue also works.
Step 5
Attach the Two Vise Pad Sections Together
Apply glue and pre-drill clearance holes in the top section.
Step 6

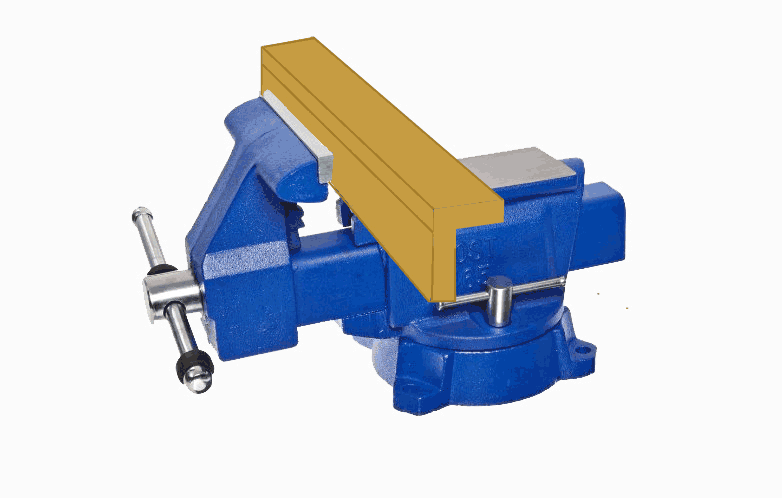

Set Wooden Jaw Pads in Place
The magnets will hold the pads in position and allow them to move with the vise jaws.
Step 7
Ideal for Holding Boards Vertically
Just drop the workpiece between the jaws and tighten. No risk of marring wood.
